Creating an Extract Action

The extract action will extract keyframes from your asset. You can specify how many keyframes you wish to extract from assets you import, while configuring your extract action. For example, you might want to extract 10 keyframes during the import, and then choose which one will act as the poster keyframe for your asset.

To create an extract action:

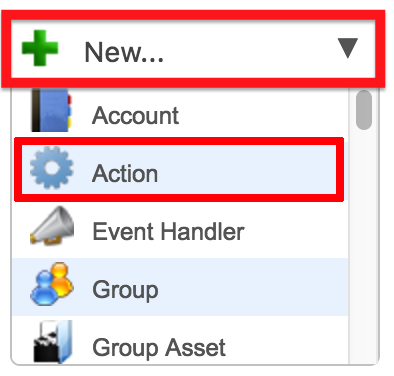

  1. From the toolbar in the Dalet Flex Console, click New and select Action from the drop down menu.

  2. In the Create new Action… section, complete the following fields:

  • Name: enter a name for your action.
  • Description: enter an optional description.
  • Visibility: select the workspaces, accounts, and groups that will be able to access this extract action.
  • Plugin Type: select your plugin type from the drop down menu, e.g. Extract.
  • Plugin: select your plugin from the drop down menu, e.g. Default Extract Action.
  1. Click Save.

  2. Next, click the Configuration sub-tab.

  3. Click Edit.

  4. Expand the Extract Frames complex, by clicking the + icon.

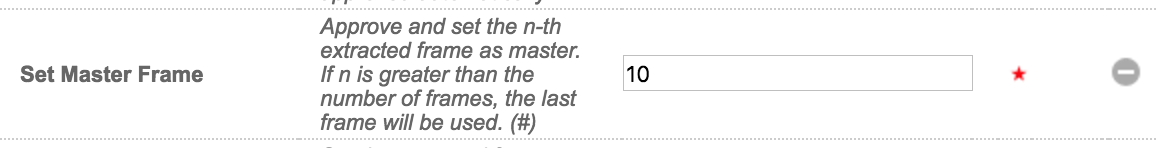

  5. In the Set a Master Frame field, enter a number.

  6. In the Fixed Interval field, enter a number.

  7. Click Save.

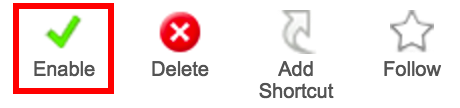

  8. Click Enable.
