Preview Panel

This page details the ways you can manage your assets with the preview panel which appears on the left of the screen when you click on an asset.

Preview Player

The top half of the Preview Panel features a player for video and audio assets. Here you can review your assets as well as perform various actions such as name changes, asset download, clipping, commenting, and more.

To edit the name of your asset:

  1. Hover over and click the asset name field or the at the top of the Preview Panel.
  2. Rename your asset as you wish, taking note that the asset name cannot contain the following characters: ‘ “ @ ~ * ^
  3. Click the checkmark or hit Enter to save your the new asset name.

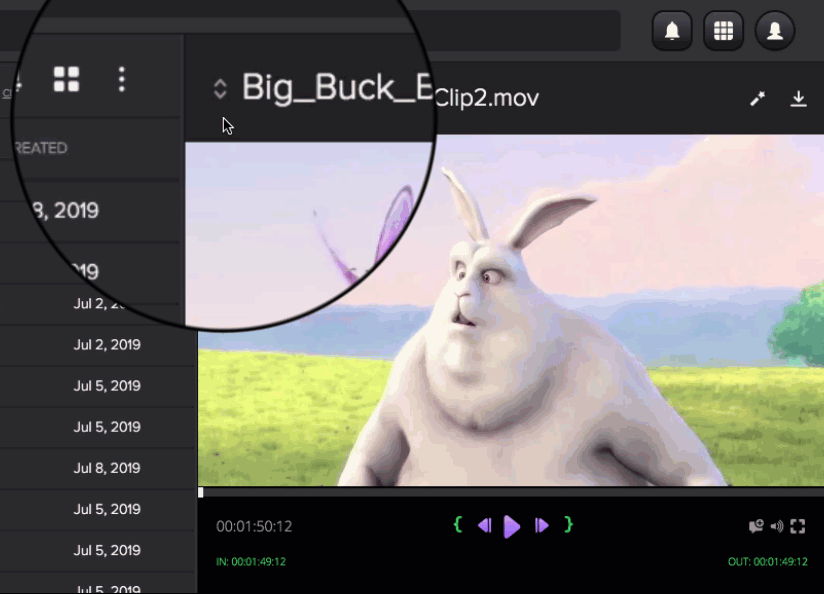

To expand/collapse preview:

Click on the left of the asset name in the Preview Panel to expand or collapse asset preview.

To run custom wizards:

Click at the top right of the Preview Panel to select from custom preconfigured wizards that you can run against your asset.

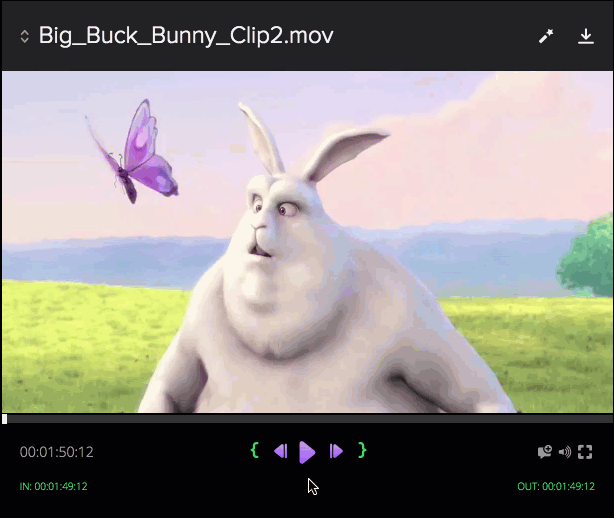

To use playback controls:

You can use the playback controls to play and pause your video or audio asset, as well as skip and rewind to the previous and next frames.

In addition to using the playback controls, you can also hit the spacebar on your keyboard to play/pause your video, hit “j” to reverse playback, “l” to forward playback. Hit “,” or “.” on your keyboard to skip the video back/forward by one frame. Hit shift + to skip backwards by one second and shift + to skip ahead.

To view your asset in fullscreen:

  1. Click or hit “f” on your keyboard
  2. Simply click the icon again or hit “f” or “esc” to exit full screen mode.

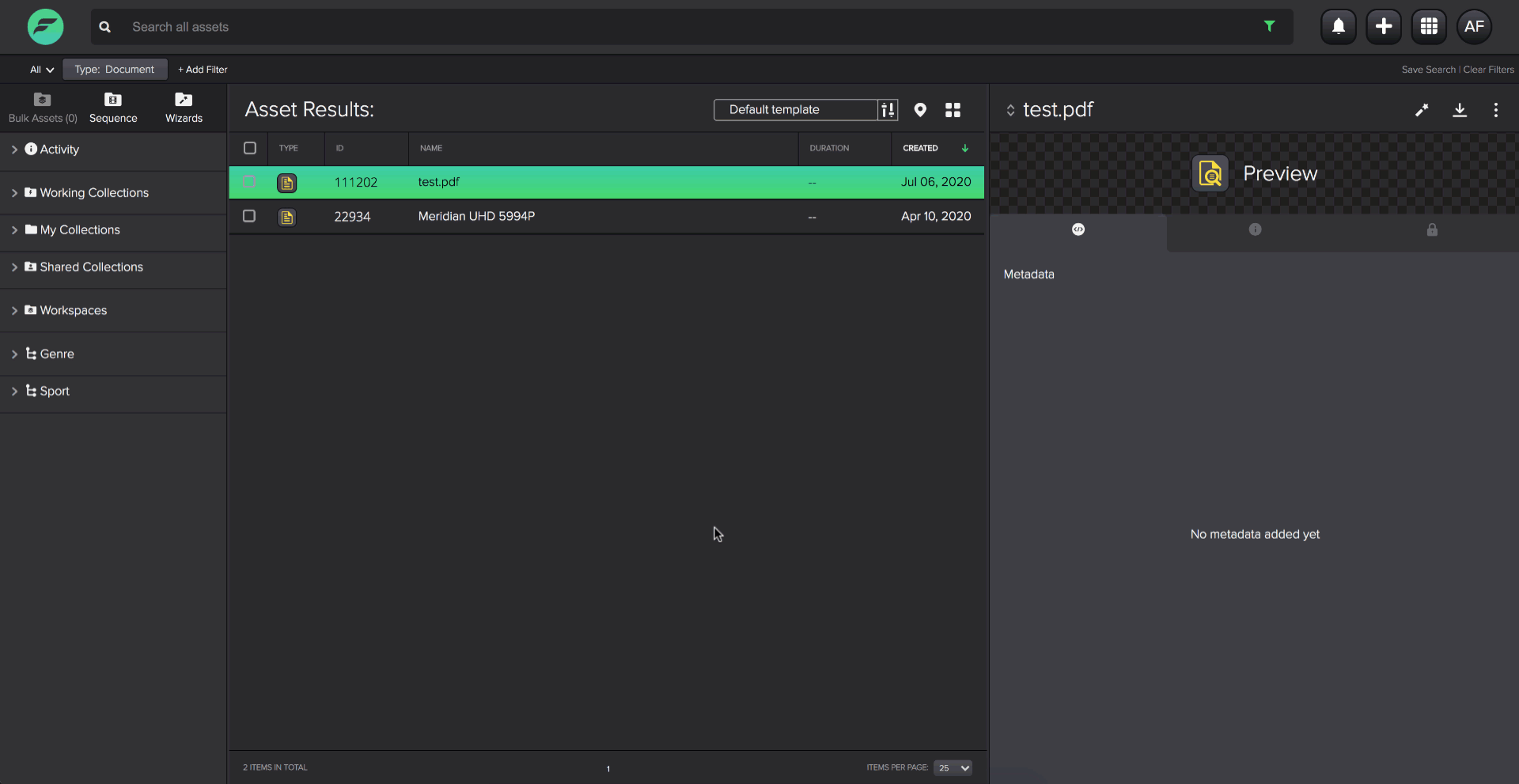

To preview a text asset:

PDF text assets can be previewed in OoyalaMAM.

  1. On the selected PDF text asset, click the preview section on the panel where the preview player would be in a video asset. This will be highlight on hover.
  2. This opens a PDF viewer within OoyalaMAM that will allow you to view, rotate, zoom, and download your PDF.

To create a new clip:

  1. On your selected video asset, play your video or drag the player slider to where you want your clip to begin.
  2. Click or hit “i” on your keyboard.
  3. Now allow your video to play or drag the slider to the point to where you want your clip to end.
  4. Click or hit “o” on your keyboard.
  5. You can play your selection by clicking or clear your selection by clicking .
  6. If you are happy with your selection, click the or hit “e” on your keyboard.
  7. Name your new clip or simply use the auto generated name.
  8. Click the or hit Enter on your keyboard.
  9. Your clip will be created and can be viewed in the Clip Bin under Collections in the left panel. You can learn how to use your Clip Bin to create sequences here.

To adjust playback speed:

  1. On your selected asset, click the playback speed icon.
  2. From the menu, you can select to speed up or slow down playback speed.

To add a timeline comment to your video asset:

  1. On your selected asset, play your video/audio asset or move the player slider to the part you wish to comment on. You can also use the set in and set out icons to comment on a section of the video.
  2. Click to the right of the playback controls or hit “c” on your keyboard and comment field will appear.
  3. In the comment field, enter your comment.
  4. Click or hit Enter to add your comment.
  5. You can now see your comment and the timestamp(s) in the comments tab.

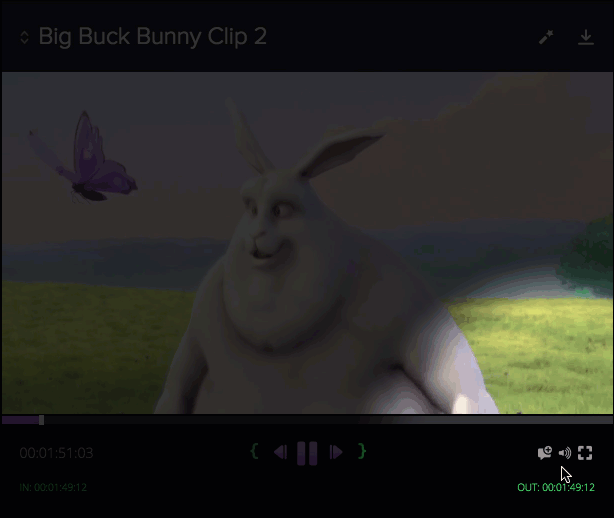

To adjust the volume of your audio or video asset:

  1. Locate the volume icon preview player.
  2. Hovering over will reveal the volume bar. Adjust the slider to your liking.
  3. Alternatively, click the icon to mute .

Preview Panel Tabs

The tabs located at the bottom half of the Preview Panel allow you to view and configure your asset metadata, view comments, as well as set and create keyframes.

Managing Asset Metadata

The metadata tab it allows you to add metadata to your assets, which is useful for categorizing content, processing data, and specifying technical information about the asset.

To add and edit metadata:

  1. Navigate to the metadata tab by clicking the tab marked with .
  2. Here you can fill in the metadata fields relevant to your selected asset.
  3. Click Save when you are satisfied with your edits.

The metadata tab is available in the Preview Panel and it allows you to add useful information to your assets, which is useful for categorizing content, processing data, and specifying technical information about the asset.

To search asset metadata:

Clicking the next to the metadata will create a chip in the search filter bar, allowing you to search for items with the same metadata field values.

Viewing Asset Details

Navigate to the Details tab by clicking the tab marked with . This tab displays basic details of your selected asset such as file type, file owner, asset origin etc. These details cannot be edited.

Managing Asset Comments

Comments can be posted against the entire media asset, as well as a specific point or time range within a video asset. Learn how to add a timeline comment here.

Navigate to the comments tab by clicking the tab marked with . Here, you can view comments you and other users have left about the selected asset.

To view and manage asset comments:

  • Clicking on an existing comment will skip to the point or highlight the section of the video asset that the comments are relevant to.
  • Play the section the comment was applied against by clicking the that appears when you hover over the comment.
  • Edit your comments by clicking the which appears on hover and making your changes in the text field. Click to save your changes, or to cancel.
  • Delete your comments by clicking the which appears on hover.

Viewing Asset Relationships

In the Relationships tab , you can see the different relationships belonging to your selected asset.

Asset Children

This tab displays assets derived from the selected (parent) asset. Hover over an asset child to see the following icons:

  • - click this icon to perform a custom preconfigured wizard on the selected child asset.
  • - click this icon to download the selected child asset.
  • - click this icon to see a drop down menu of actions (Add to Clip Bin, add to Collection, Copy, Move, etc.) that can be performed on the selected child asset.

You can double click a child to reveal a full view of it and see its details.

Asset Memberships

In this tab, you’ll see a list of the objects, e.g. a UDO, Group, Collection that this asset belongs to. You can click the that appears on hover to go to the parent object and view its other assets.

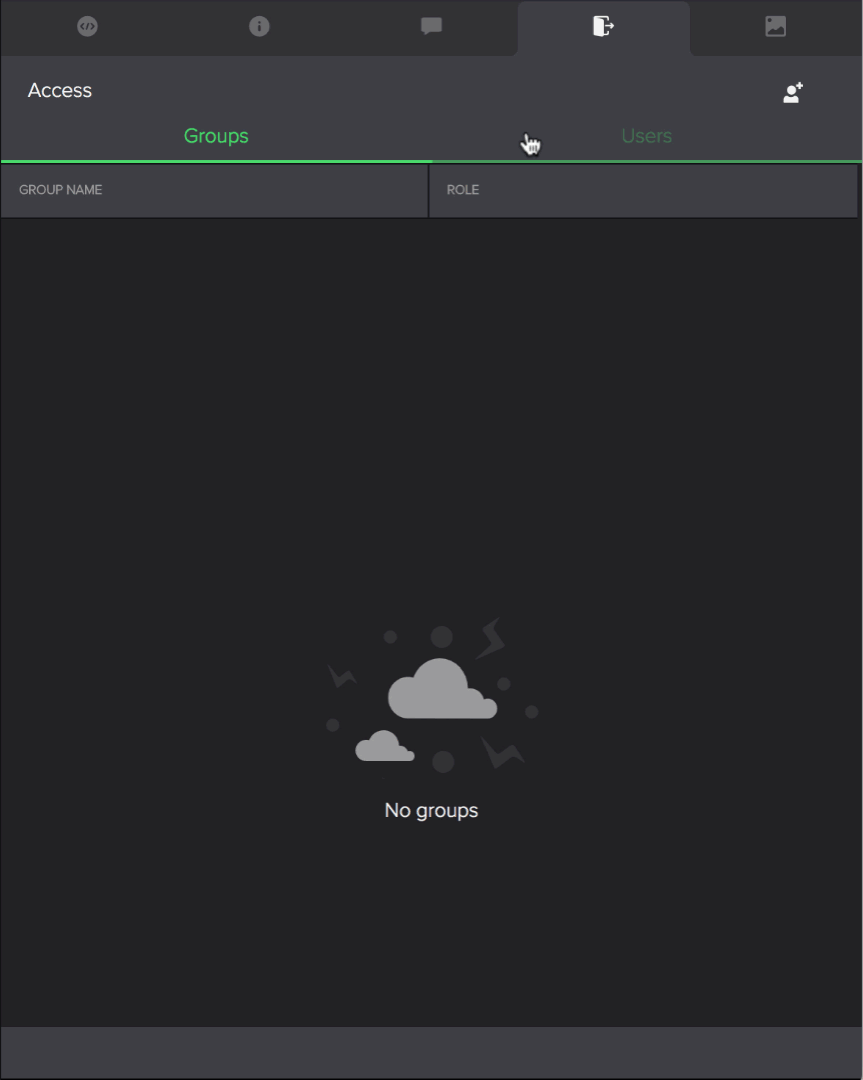

Managing Asset Access Permissions

In the Access tab , you can see a list of which Users or Groups have access to your selected asset, and the roles of these users and groups. Users with the correct permissions will also be able to grant user or user groups access to an asset.

To manage access for an asset:

  1. In the right summary panel, click on the Access tab .
  2. In the tab, click the icon.
  3. This will open the Share with people and groups pop up.
  4. In the window, you can search for the name of a user or group you want to share your collection with. You can toggle between individual users or groups from the icons to the left of the search bar.
  5. You can search for and add different users and groups and configure the level of access they have to your collection.
  6. From the drop down menu, you can select Off, View, or Modify.
  • Off: your collection is not shared with this user or group.
  • View: your collection can be viewed by this user or group but they cannot edit it.
  • Modify: your collection can be edited by this user or group.
  1. Once you are happy with you settings, click Share.

Viewing Metadata Markers

Metadata markers mark events at specific times in a video asset. You can view markers for your selected asset in the Metadata markers tab by clicking the tab marked with in the Preview Panel, but you must go to the Manage Page to add metadata markers.

Clicking on a marker in your search results list in Marker View will open the preview panel for the relevant asset and load the marker tab to display the selected marker. Click the icon in the Marker tab to toggle between the selected marker and the list of all markers belonging to the asset.

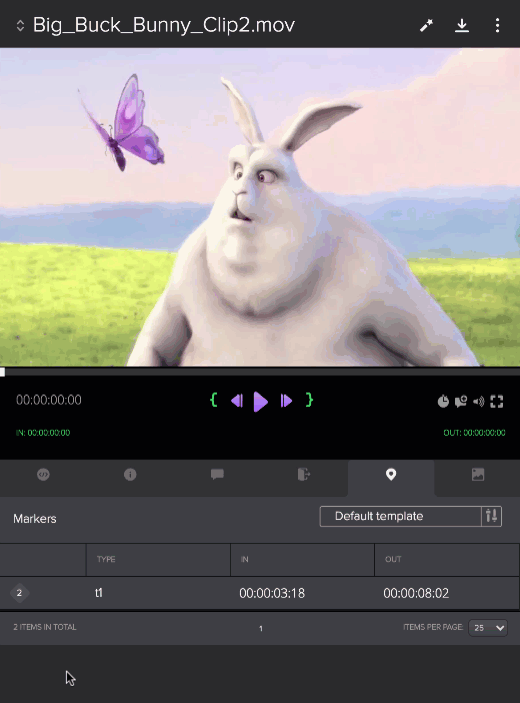

Selecting a marker range in the table will highlight it on the player, and you can use the green playback buttons to play the range.

To use table templates when viewing metadata markers:

  • Use the template selection bar to select and apply your desired template .
  • Use the table column headers to search and filter your markers.
  • Learn how to create markers templates here

To edit a marker:

  1. Hover over the marker you wish to edit and click the .
  2. Make your desired changes to your marker in out points and metadata.
  3. Click Save.

To run wizards on a marker:

  1. Hover over your selected marker and click the that appears on hover.
  2. Select a wizard from the drop down menu to configure and run.

To perform actions on a marker:

  1. Hover over your selected marker and click the that appears on hover.
  2. You can Add to Clip Bin, add to Collection, Play the marker range, or Delete the marker.

Managing Keyframes

Navigate to the keyframe tab by clicking the tab marked with . Here you can manage the keyframes of your selected asset. You can set a master keyframe to be the cover of your asset in tile view.

To upload a keyframe:

  1. Click at the top right corner of the keyframe tab.
  2. This will open a window where you can either drag and drop an image or click to upload an image. You can only upload one keyframe at a time.
  3. Once you have selected an image, you can do the following:
  • Add a title and description (optional)
  • Tick the Master Keyframe checkbox to automatically set it as the master keyframe once uploaded.
  1. Click Upload.
  2. Your newly uploaded keyframe will now appear in the keyframe tab.

To download a keyframe:

Select the keyframe you want to download and click .

To extract a keyframe:

  1. On your selected asset, move the player slider to the frame you wish to extract.
  2. Click the icon.
  3. If you wish, give your keyframe a Title and Description by clicking on the respective fields and editing as desired. Don’t forget to click Save.

To delete a keyframe:

Select the keyframe you want to delete and click the icon.

To set and unset a master keyframe:

  1. Select an existing keyframe.
  2. Tick the Set master keyframe checkbox.
  3. You should now see your master keyframe when you check your asset in tile view.
  4. Simply uncheck the checkbox to unset the master keyframe.

Viewing Asset History

In the History tab, you can view the history of an asset by most recent activity, i.e. changes and actions applied to the asset, the user that made these changes, and when they were made.
